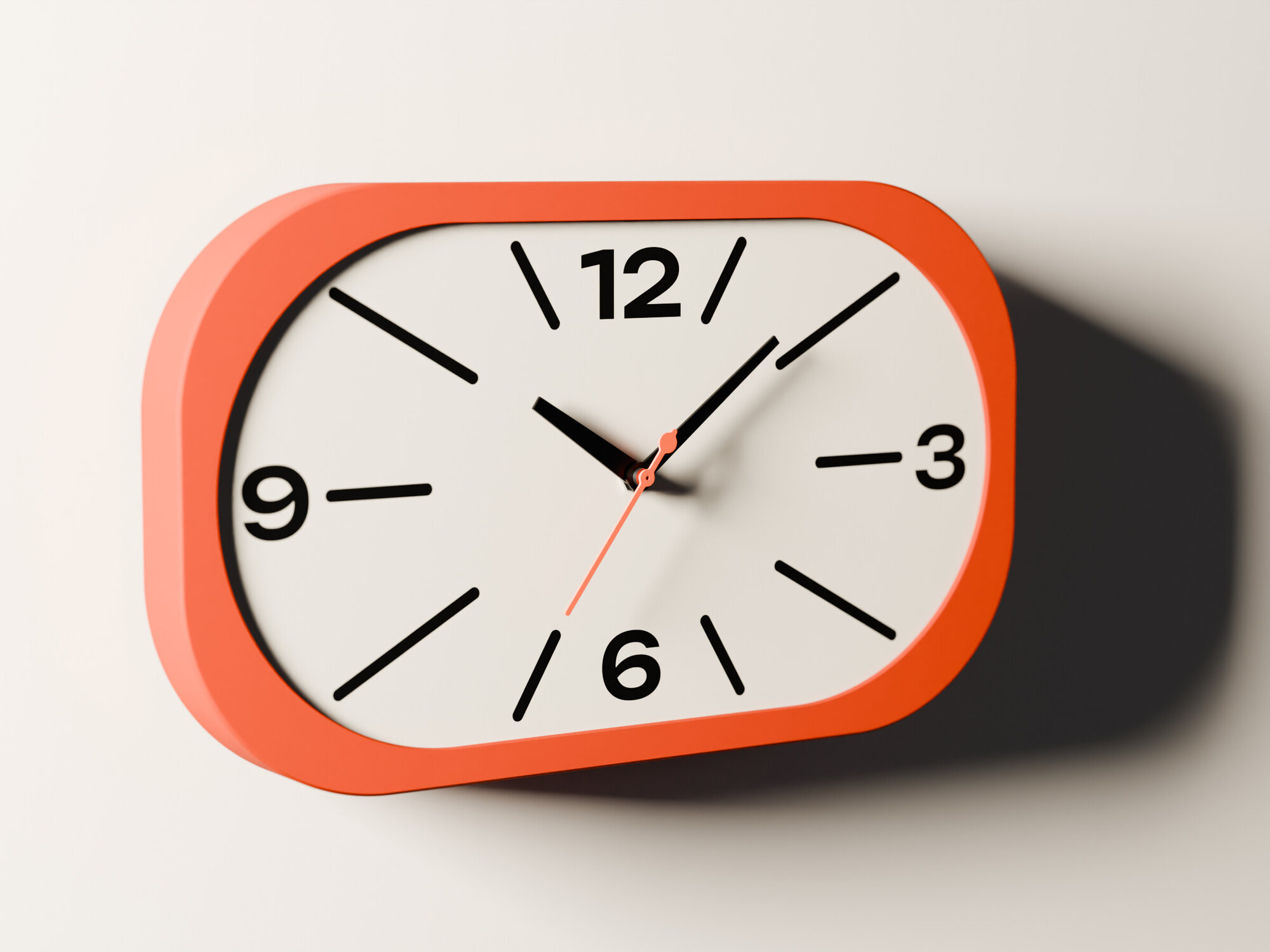

The Stadium clock on a pale wall from the left, its shadow falling to the right.

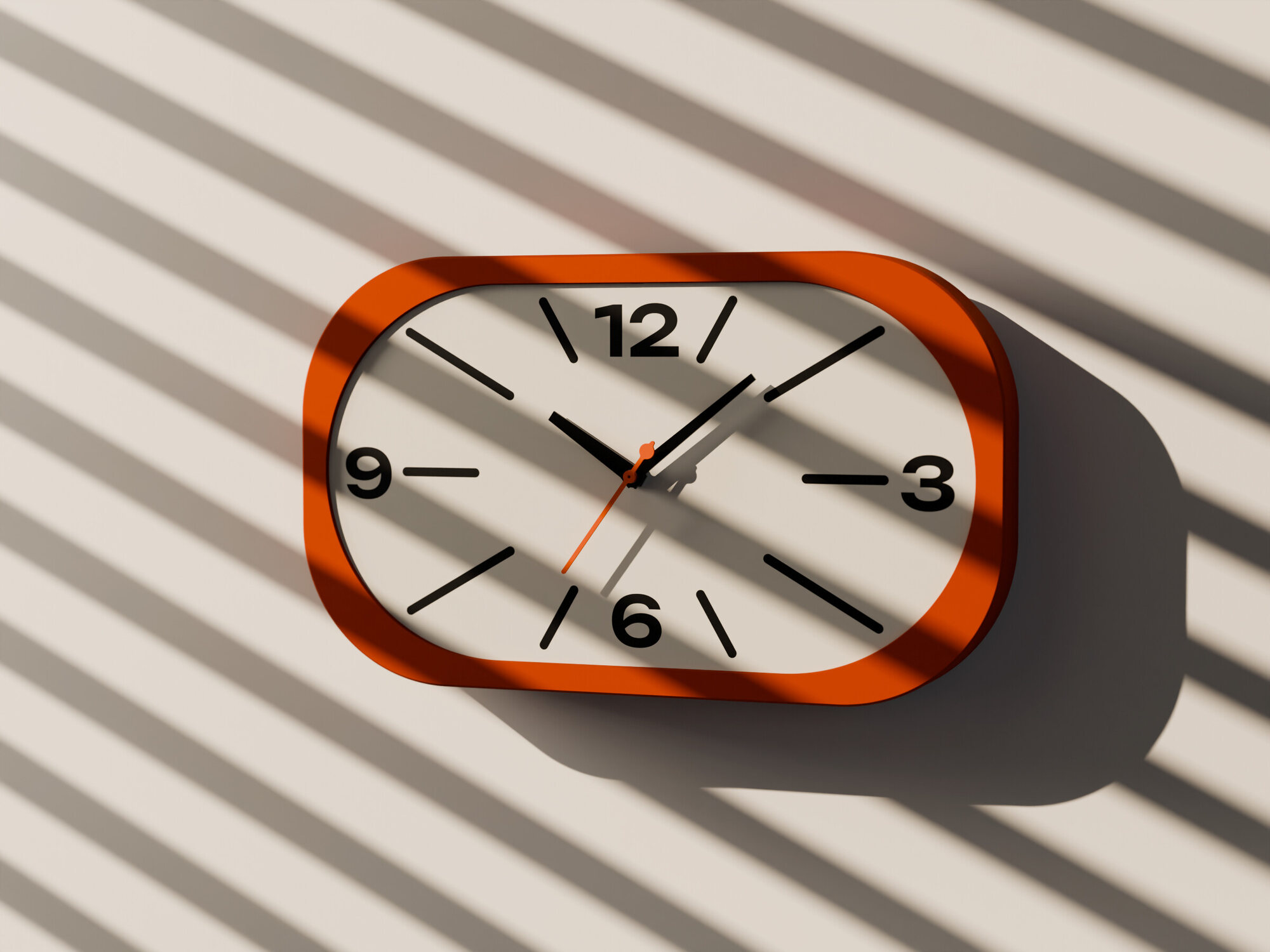

The clock on the wall with sunlight through blinds striping the wall and the dial.

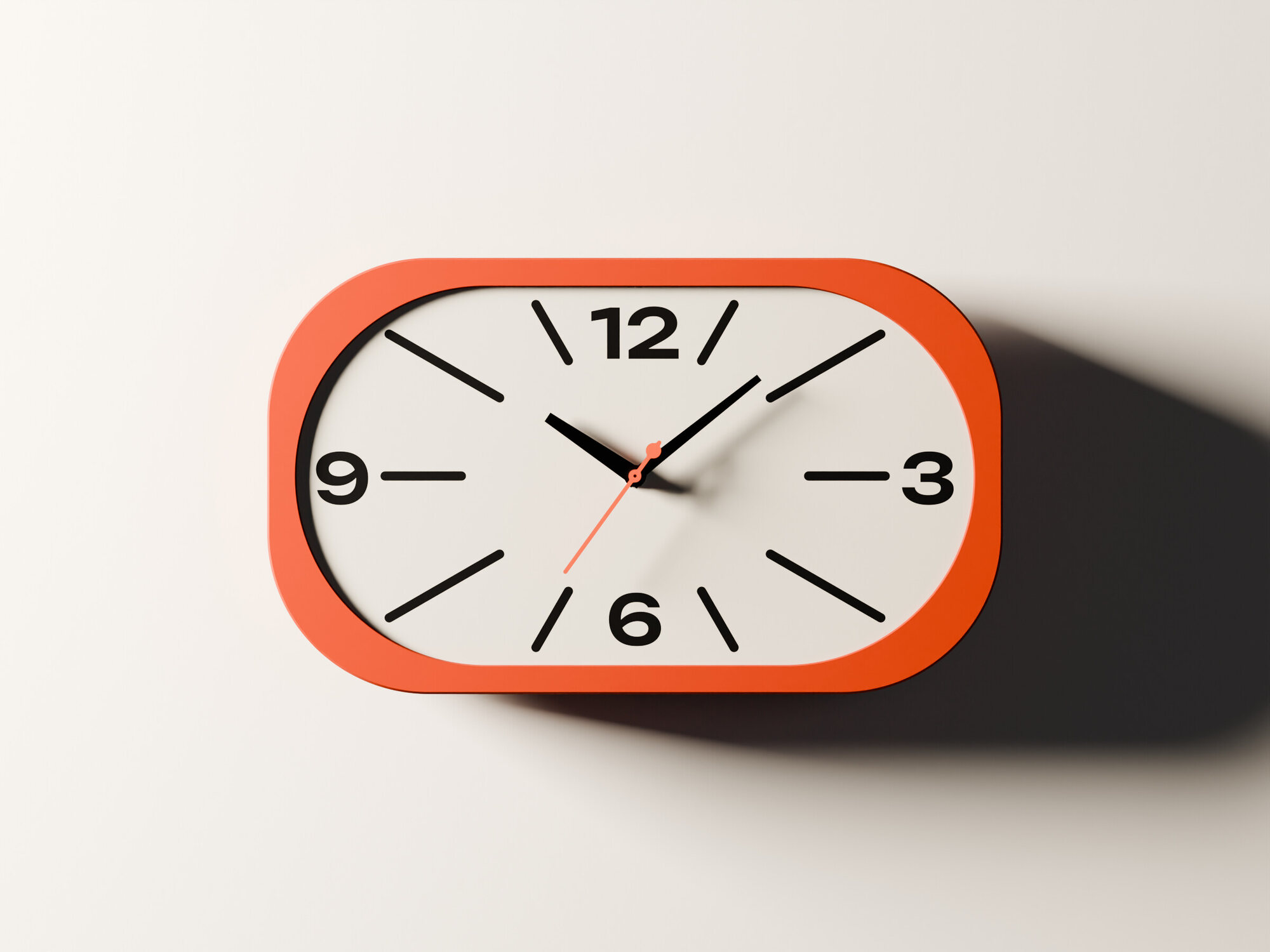

The clock straight on, orange frame, off-white dial, black numerals.

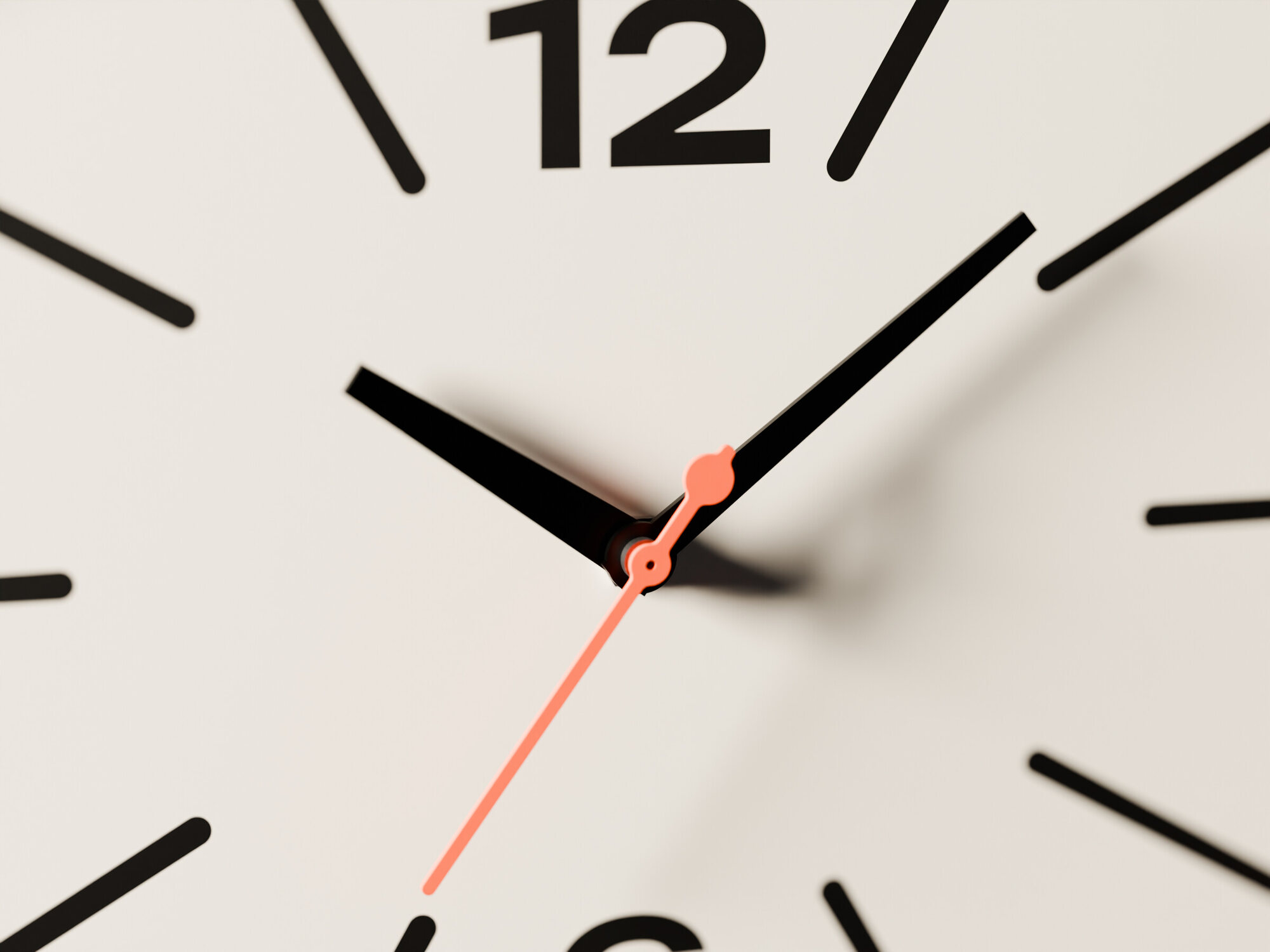

Close up of the hands and the 12, the orange second hand crossing the dial.

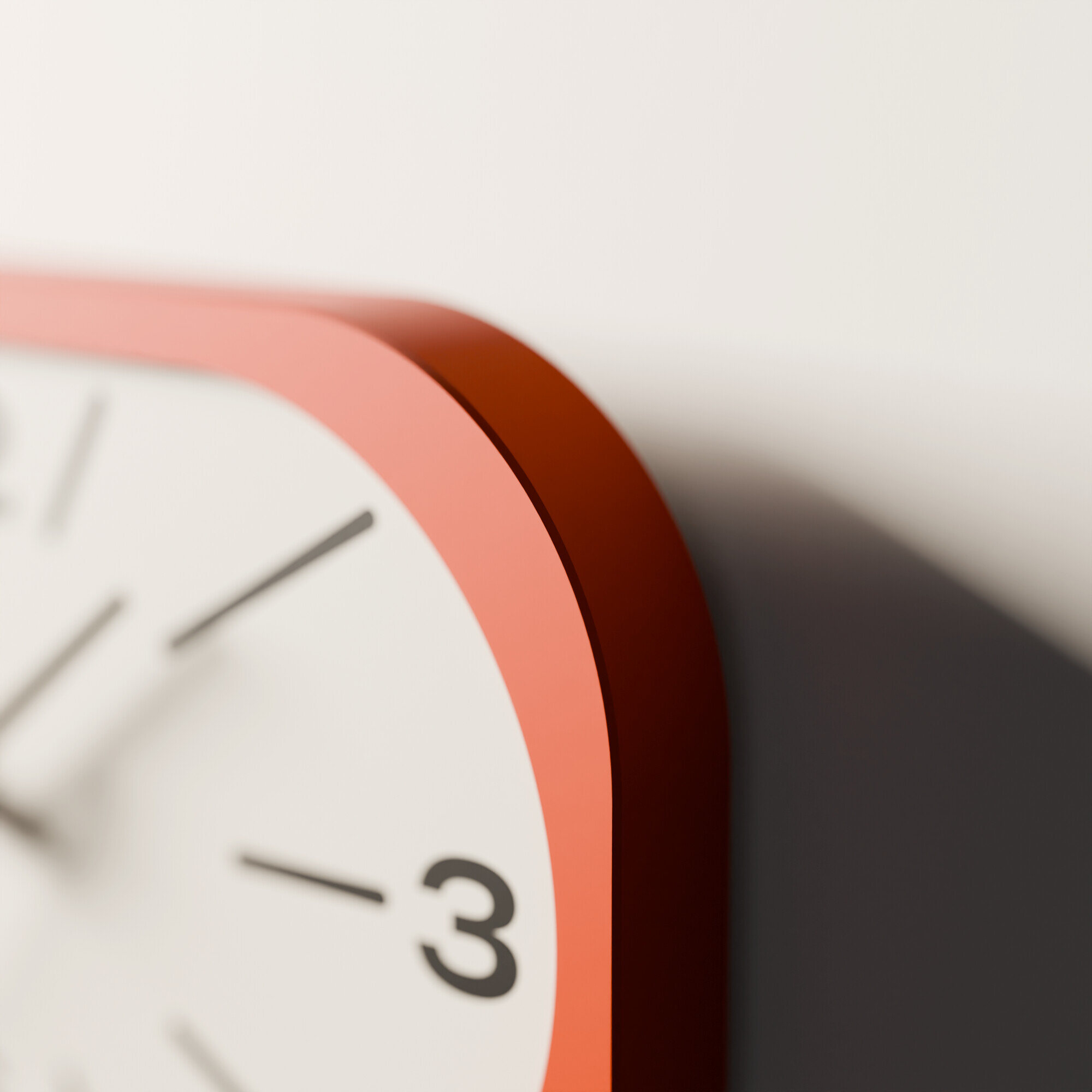

The rounded end of the orange frame up close, the dial out of focus beside it.

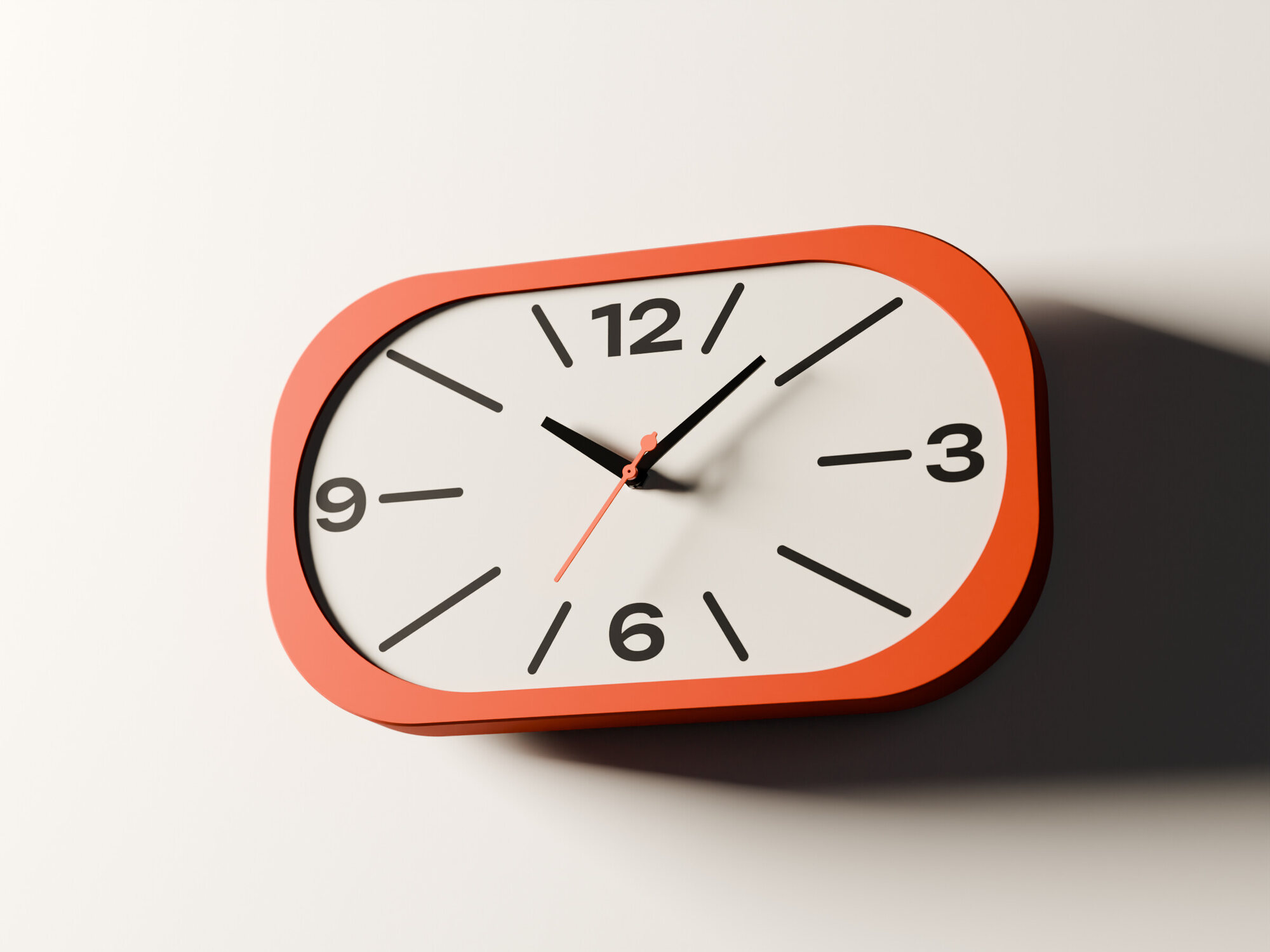

The clock seen from below and to the right, showing the depth of the frame.

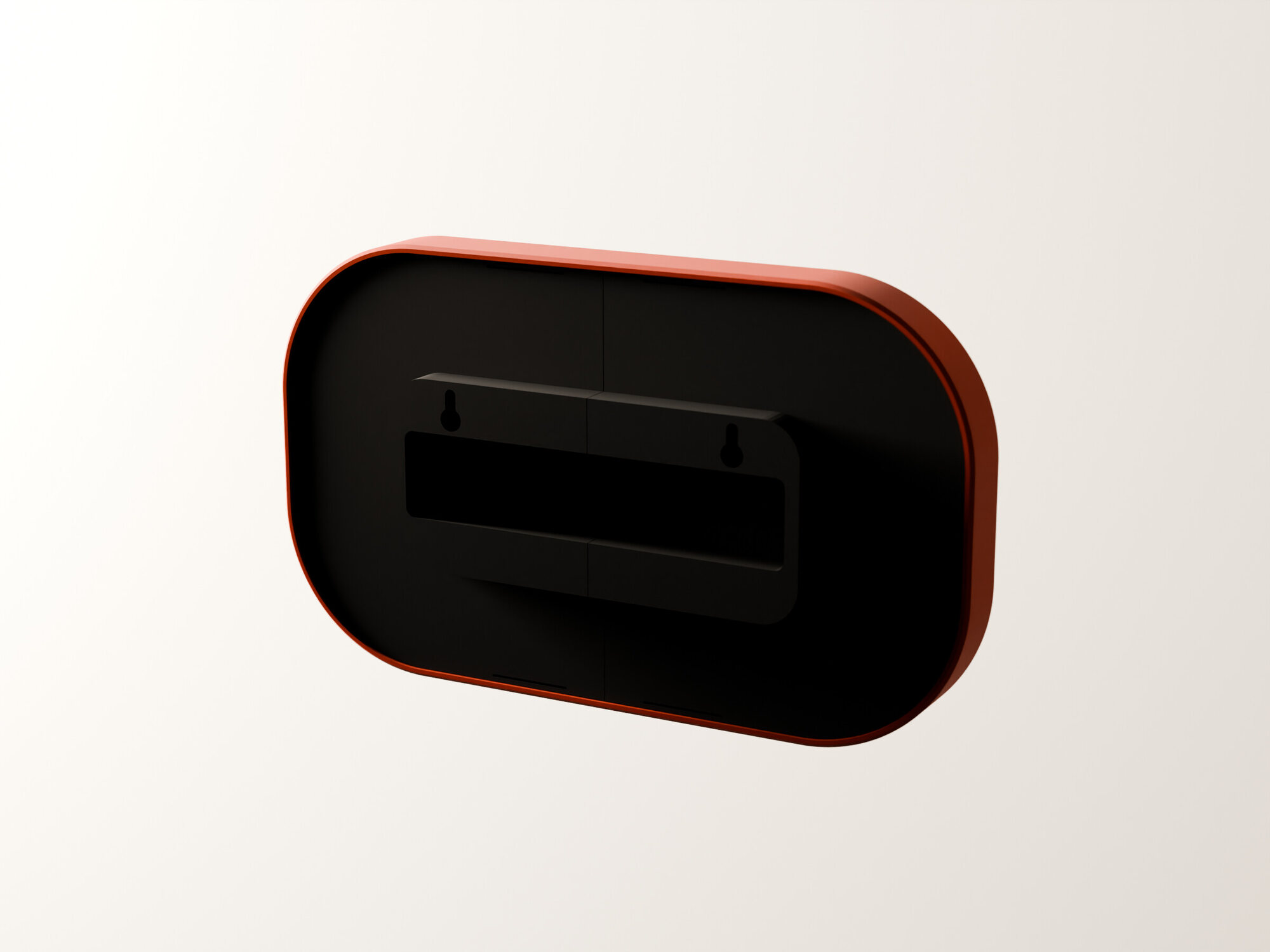

The back of the clock: the charcoal panel with its plinth, the strip bars and the two keyholes.

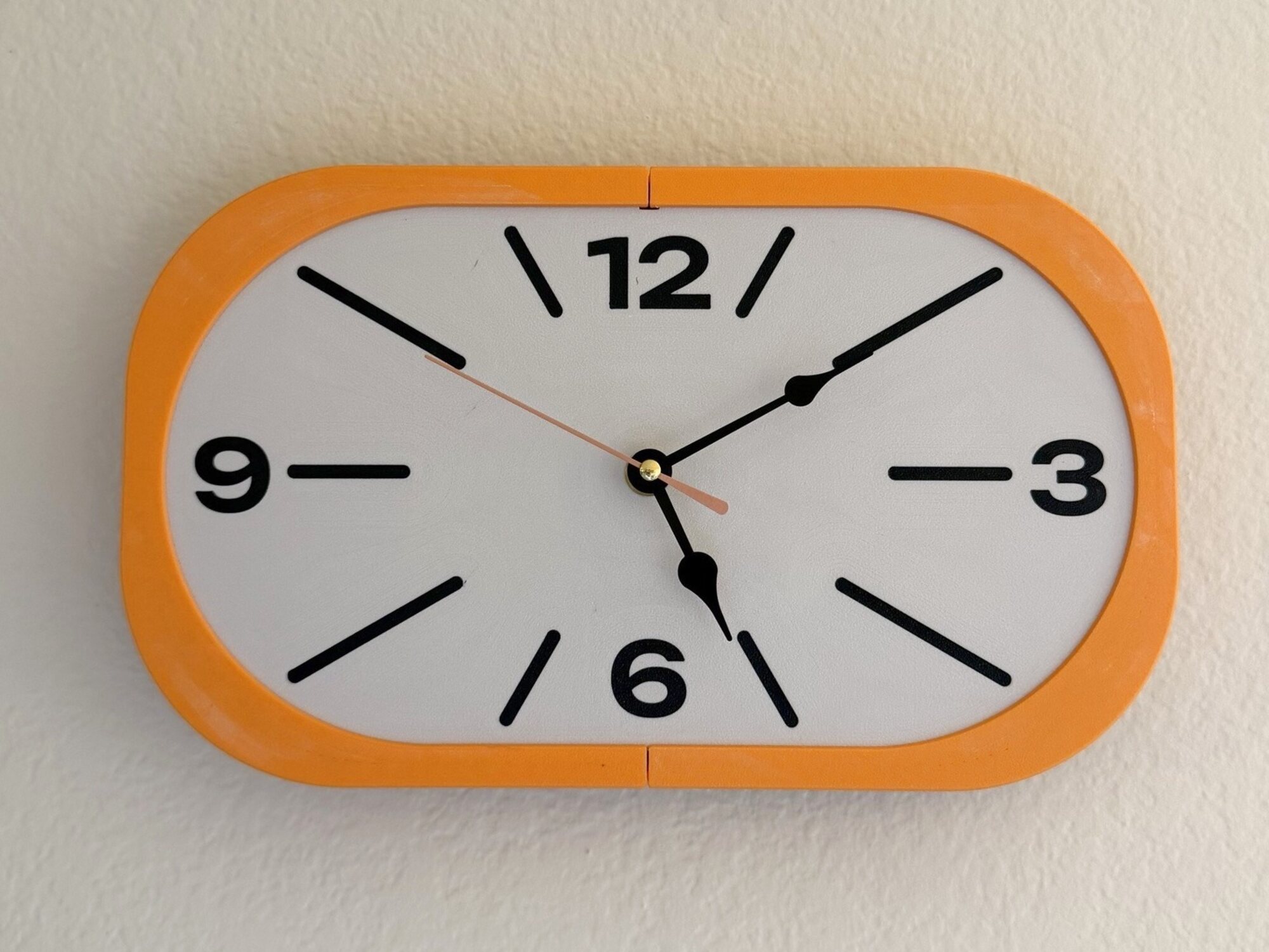

Our printed clock on a textured wall, Mandarin Orange frame and Bone White dial.

Stadium Wall Clock V1

A minimal modern wall clock that prints in five parts and snaps together

Still warm Available on MakerWorld

A wall clock shaped like a running track. 307 × 182 × 40 mm on the wall, an orange frame round an off-white dial with the numerals inlaid flush.

Size
307 × 182 × 40 mm
Filament
≈ 394 g
Parts
Five, on five plates
Movement
56 mm square quartz, 16 mm shaft, 1 AA battery
Hanging
Picture strips on the back bars, or two screws 124 mm apart into the keyholes
Hardware
None needed. Eight 8 × 2 mm magnets optional

What it is

The dial is 286 mm wide and prints in one piece, corner to corner on a 256 mm bed. The frame and the back panel are too wide for the bed, so they print in halves and snap together.

The dial clicks into the frame on four spring fingers, and the back panel clicks into the frame on four catches. There are pockets for eight 8 × 2 mm magnets if you want the panel held harder. No glue, no screws.

It runs on a standard 56 mm quartz movement with a 16 mm shaft. Use the movement's own hands: minute hand 55 to 77 mm, hour hand 35 to 50 mm.

Printing it

What we printed ours with.

Layer height
0.2 mm on a 0.4 mm nozzle
Walls
2 perimeters
Infill
15%, grid
Supports
None. Brim on the dial only
Bed
256 × 256 mm. It won't fit an A1 mini
Colours
Frame: Mandarin Orange. Dial: Bone White with Charcoal numerals, inlaid with an AMS. Back panel: Charcoal, or any spare filament, it's hidden. All Bambu PLA Matte.
Plates
Five. Dial: 2 h 12 min, 104 g. Frame halves: 1 h 23 min, 63 g each. Panel halves: about 1 h 35 min, 82 g each. About 8 hours and 394 g in all.

If your printer disagrees with any of this, trust your printer.

Filaments

  • Bambu PLA Matte Mandarin Orange (11300) The frame Spool Refill
  • Bambu PLA Matte Bone White (11103) The dial Refill
  • Bambu PLA Matte Charcoal (11101) The numerals and the back panel Spool Refill

On MakerWorld: sliced profiles for AMS, the parts on their own, and the three filaments and the Bambu clock kit as a Ready-to-Build Pack.

Also available on MakerWorld

You hand over

One email address

The file costs an email. When we release another design you'll get one message about it. There's still no newsletter.

You take away

  • 3MFcolors already set, opens in Bambu Studio
  • STLdrop straight into a slicer
  • OBJif you want to change it first
Model
Stadium Wall Clock
Size
307 × 182 × 40 mm
Licence
Print it, remix it, give it away. Don't sell it.
